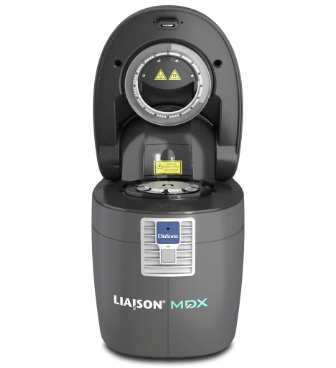

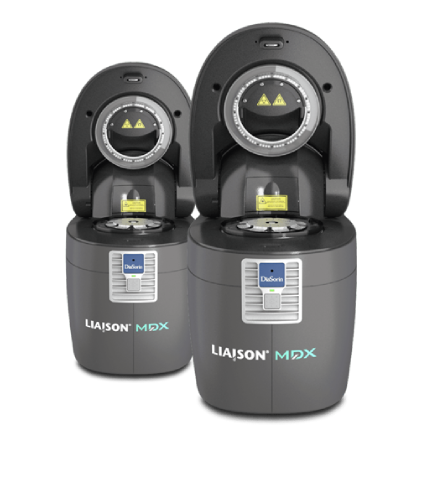

The LIAISON® MDX is a powerful thermocycler with two consumable disc options: the 8-well Direct Amplification Disc and the 96-well Universal Disc. It is flexible, allowing real-time PCR for qualitative, quantitative, and multi-analyte detection. It performs IVD and LDT.
The powerful software displays amplification curves during and after a run. The software plots QC Charts and interfaces bidirectionally with LIS for easy lab workflow integration. You can use the software while running.
Uses minimal laboratory space by measuring only 31x21x31cm
Results are generated in as fast as one hour and are easy to interpret for quick and accurate diagnosis.
Can be used with two different consumable discs – the 8-well Direct Amplification Disc and the 96-well Universal Disc, allowing for versatility in handling differing volumes such as with seasonal assays.
| PRODUCT# | PRODUCT NAME | QUANTITY |
|---|---|---|
| MOL1001 | LIAISON® MDX 110V laptop computer, accessories box, and optional printer. | 1 |
| MOL1011 | LIAISON® MDX 220V laptop computer, accessories box, and optional printer. | 1 |
| MOL1100 | Accessories Box Includes: USB Cable (MOL1102), Bar Code Scanner (MOL1103), Mouse Pad (MOL1104), 2x Universal Disc Loading Block (MOL1105), 2x Disc Film Applicator (MOL1106), EU power cord for Dell laptop (MOL1202), and optional Laptop Security Cable (MOL1109). | 1 |
| MOL1012 | UK power cord for LIAISON® MDX | 1 |
| MOL1201 | UK power cord for Dell Laptop | 1 |
| MOL1401 | Simplexa™Universal Disc – Boxes | 25 |
| MOL1400 | Simplexa™ Universal Disc – Case | 100 |
| PRODUCT# | PRODUCT NAME | QUANTITY |
|---|---|---|
| MOL2750 | Simplexa™ Bordetella Direct Kit*
A real-time PCR assay for the in vitro qualitative detection and differentiation of Bordetella pertussis and Bordetella parapertussis from nasopharyngeal swabs. Does not require extraction. |
24 |
| MOL2760 | Simplexa™ Bordetella Positive Control Pack
Inactivated Bordetella bacteria |
10 |
| MOL2950 | Simplexa™ C. difficile Direct Kit*
A real-time PCR assay for the in vitro qualitative detection of Clostridium difficile toxin B gene (tcdB) present in liquid or unformed stool samples from individuals suspected of C. difficile infection (CDI). Does not require extraction. To be used in conjunction with Sample Preparation Kit (25 units, MOL5290). |
24 |
| MOL2960 | Simplexa™ C. difficile Positive Control Pack
Inactivated C. difficile bacteria |
10 |
| MOL5290 | Simplexa™ C. difficile Sample Prep Kit
Sample preparation kit for use with the Simplexa™ C. difficile Direct Kit (MOL2950). |
25 |
| MOL2250 | Simplexa™ Congenital CMV Direct Kit*
A real-time PCR assay for the in vitro qualitative detection of cytomegalovirus (CMV) viral DNA from saliva swabs and urine specimens from infants less than 21 days of age. Does not require extraction. |
24 |
| MOL2260 | Simplexa™ Congenital CMV Positive Control Pack
Inactivated cytomegalovirus |
10 |
| MOL4150 | Simplexa™ COVID-19 Direct Kit*
A real-time PCR assay for the in vitro qualitative detection of severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) RNA from BAL, nasal swab, nasal wash/aspirate, nasopharyngeal swab and saliva specimens. Does not require extraction. |
24 |
| MOL4160 | Simplexa™ COVID-19 Positive Control Pack.
Synthetic gene fragments for SARS-CoV-2 ORF1ab and S gene target regions. |
10 |
| MOL4250 | Simplexa™ COVID-19 & Flu A/B Direct Kit*
A real-time PCR assay for the in vitro qualitative detection and differentiation of severe acute |
24 |
| MOL4260 | Simplexa™ COVID-19 & Flu A/B Positive Control Pack
Inactivated SARS-CoV-2, inactivated influenza A virus and inactivated influenza B virus. |
10 |
| MOL2655 | Simplexa™ Flu A/B & RSV Direct Gen II Kit*
A real-time RT-PCR assay for the in vitro qualitative detection and differentiation of influenza A, influenza B, and respiratory syncytial virus (RSV) from nasopharyngeal swabs. Does not require extraction. |
24 |
| MOL2660 | Simplexa™ Flu A/B & RSV Positive Control Pack
Inactivated influenza A virus, inactivated influenza B virus, and inactivated RSV. |
10 |
| MOL2850 | Simplexa™ Group A Strep Direct Kit*
A real-time PCR assay for the in vitro qualitative detection of Group A Streptococcus bacterial DNA from a throat swab specimen. Does not require extraction. |
24 |
| MOL2860 | Simplexa™ Group A Strep Positive Control Pack
Inactivated Group A Streptococcus bacteria |
10 |
| MOL3550 | Simplexa™ GBS Direct Kit*
A real-time PCR assay for the in vitro qualitative detection of Group B Streptococcus bacterial DNA from Lim broth enrichment. Does not require extraction. |
24 |
| MOL3560 | Simplexa™ GBS Positive Control Pack
Inactivated Group B Streptococcus bacteria. |
10 |
| MOL2150 | Simplexa™ HSV 1 & 2 Direct Kit*
A real-time PCR assay for the in vitro qualitative detection and differentiation of HSV1 and HSV2 present in CSF, cutaneous and mucocutaneous swab specimens. Does not require extraction. |
24 |
| MOL2160 | Simplexa™ HSV 1 & 2 Positive Control Pack
Inactivated HSV 1 & 2 viruses |
10 |
| MOL4350 | Simplexa™ SARS-CoV-2 Variants Direct (RUO)*
A Research Use Only (RUO) assay for the in vitro qualitative detection of the SARS-CoV-2 mutations L452R, E484A, E484K, E484Q, G496S, Q498R, N501Y, and Y505H in nasopharyngeal and nasal swabs. Does not require extraction. For Research Use Only. Not for use in diagnostic procedures. |
24 |
| MOL4360 | Simplexa™ SARS-CoV-2 Variants Positive Control Pack (RUO)
Inactivated SARS-CoV-2. For Research Use Only. Not for use in diagnostic procedures. |
10 |
| MOL3650 | Simplexa™ VZV Direct Kit*
A real-time PCR assay for the in vitro qualitative detection of varicella-zoster virus DNA present in CSF samples. Does not require extraction. |
24 |
| MOL3655 | Simplexa™ VZV Swab Direct Kit*
A real-time PCR assay for the in vitro qualitative detection of varicella-zoster virus DNA present in cutaneous and mucocutaneous swab specimens. Does not require extraction. |
24 |
| MOL3660 | Simplexa™ VZV Positive Control Pack
Inactivated varicella-zoster virus |
10 |
| PRODUCT# | PRODUCT NAME | QUANTITY |
|---|---|---|
| MOL2700 MOL2775 |
Simplexa™ Bordetella Universal Direct Kit
A real-time PCR assay for the in vitro qualitative direct detection and differentiation of Bordetella pertussis and Bordetella parapertussis. Does not require extraction. |
100 1000 |
| MOL2975 | Simplexa™ C. difficile Universal Direct Kit
A real-time PCR assay for the in vitro qualitative direct detection of the toxin B gene (tcdB) of C. difficile. Does not require extraction. |
100 |
| MOL2185 MOL2175 |
Simplexa™ HSV 1/2 & VZV Universal Direct Kit
A real-time PCR assay for the in vitro qualitative direct detection and differentiation of HSV1, HSV2, and VZV from cutaneous and mucocutaneous swab specimens. Does not require extraction. |
100 1000 |
| PRODUCT# | PRODUCT NAME | QUANTITY |
|---|---|---|
| MOL2200 | Simplexa™ CMV Kit
A real-time PCR assay for the in vitro quantitation of cytomegalovirus (CMV). |
100 |
| MOL3100 | Simplexa™ Dengue Kit
A real-time PCR assay for the in vitro detection and typing of dengue virus serotypes 1, 2, 3 and 4. |
100 |
| MOL2400 | Simplexa™ EBV Kit
A real-time PCR assay for the in vitro quantitation of Epstein-Barr virus (EBV). |
100 |
| MOL2600 | Simplexa™ Flu A/B & RSV Kit
A real-time RT-PCR assay for the in vitro qualitative detection and differentiation of influenza A, influenza B, and respiratory syncytial virus (RSV). |
100 |
| MOL2500 | Simplexa™ Influenza A H1N1 (2009) Kit
A real-time RT-PCR assay for the in vitro qualitative detection and differentiation of seasonal influenza A and 2009 H1N1 influenza. |
100 |
| PRODUCT# | PRODUCT NAME | QUANTITY |
|---|---|---|
| MOL2210 | Simplexa™ CMV Quantitation Standards
Intended to establish a standard curve with the Simplexa™ CMV assay. Includes 5 vials; each vial contains 400μL |
5 x 400μL |
| MOL2410 | Simplexa™ EBV Quantitation Standards
Intended to establish a standard curve with the Simplexa™ EBV assay. Includes 5 vials; each vial contains 400μL |
5 x 400μL |
| PRODUCT# | PRODUCT NAME | QUANTITY |
|---|---|---|
| MOL8011 | Simplexa™ Adenovirus Molecular Control
Inactivated adenovirus in human base matrix |
2 x 250μL |
| MOL8009 | Simplexa™ BKV Molecular Control
DNA fragment of a well-conserved region of BKV VP2 gene in human base matrix. |
2 x 250μL |
| MOL8006 | Simplexa™ Bordetella Molecular Control
DNA fragment containing both the IS481 and IS1001 target regions. |
2 x 50μL |
| MOL8002 | Simplexa™ CMV Molecular Control
DNA fragment containing a well-conserved region of CMV UL83 gene in human base matrix. |
2 x 250μL |
| MOL3103C | Simplexa™ Dengue Molecular Control
Inactivated dengue virus including serotypes 1, 2, 3 and 4. |
2 x 800μL |
| MOL8008 | Simplexa™ EBV Molecular Control
DNA fragment of a well-conserved region of EBV LMP2A gene in human base matrix. |
2 x 250μL |
| MOL8033 | Simplexa™ Group A Strep Molecular Control
Inactivated Group A Streptococcus bacteria |
1 x 100μL |
| PRODUCT# | PRODUCT NAME | QUANTITY |
|---|---|---|
| MOL9000 MOL9300 |
Simplexa™ Extraction and Amplification Control Set
This set consists of a DNA template and labeled primer pair intended to be used as a process control to detect systemic variation that may arise during the extraction and amplification steps of real-time PCR assays. |
100 1000 |
| MOL9200 | Simplexa™ Extraction and Amplification Control Set – RNA
This set consists of an RNA template and a labeled primer pair intended to be used as a process control to detect systemic variation that may arise during the extraction and amplification steps of real-time RT-PCR assays. |
100 |
| PRODUCT# | PRODUCT NAME | QUANTITY |
|---|---|---|
| MOL9010 MOL9310 |
2.5X Universal Master Mix
Developed for low reaction volume applications and supplied in a 2.5X concentration solution. Contains all of the necessary PCR components (enzyme, dNTPs, buffer, MgCl2 |
2 x 200μL 1 x 860μL |
| MOL9090 | Fungal Lysis Solution
Lysis solution for use in sample preparation of fungus/yeast for PCR applications. |
1 x 625μL |
| MOL9060G | HS (High Salt) Master Mix
A high salt PCR master mix supplied in a 2.5X concentration solution. Contains all of the necessary PCR components (enzyme, dNTPs, buffer, MgCl2, KCl). |
4 x 200μL |
| MOL9070 MOL9370 |
TA (Temperature Activated) Master Mix
A temperature-activated PCR master mix supplied in a 2.5X concentration solution. Enzyme activity is blocked until heat is activated during the initial PCR step. Contains all of the necessary PCR components (enzyme, dNTPs, buffer, MgCl2). |
2 x 200μL 1 x 440μL |
| MOL9018 | Reverse Transcriptase
Buffered enzyme to transcribe RNA templates into cDNA. |
1 x 50μL |
| PRODUCT# | PRIMER PAIR NAME | GENE TARGET | FLUOR | VOLUME |
|---|---|---|---|---|
| MOL9011 | Adenovirus 3’ Hexon | 3’ Hexon Polypeptide | FAM (520) | 50μL |
| MOL9012 | Adenovirus 5’ Hexon | 5’ Hexon Polypeptide | FAM (520) | 50μL |
| MOL9009 | BKV | VP2 | FAM (520) | 25μL |
| MOL9009 | BKV | VP2 | FAM (520) | 50μL |
| MOL9069 | BKV Gen II | VP2-VP3-VP1 | FAM (520) | 50μL |
| MOL9039 | Chikungunya | Alphavirus E1 Glycoprotein | FAM (520) | 50μL |
| MOL9002 | CMV | UL83 | FAM (520) | 50μL |
| MOL9041 | Dengue Virus 1 | NS5 | FAM (520) | 50μL |
| MOL9042 | Dengue Virus 2 | NS3 | CFR 610 | 50μL |
| MOL9043 | Dengue Virus 3 | NS5 | FAM (520) | 50μL |
| MOL9044 | Dengue Virus 4 | Capsid | CFR 610 | 50μL |
| MOL9008 | EBV | LMP2A | FAM (520) | 50μL |
| MOL9020 | Enterovirus | 5’ Non-Coding Region | FAM (520) | 50μL |
| MOL9022 | HHV-6 | P100 | FAM (520) | 50μL |
| MOL9099 | HHV-8 | ORF 26 | FAM (520) | 25μL |
| MOL9029 | hMPV | F gene | FAM (520) | 50μL |
| MOL9037 | HSV-1 Gen II | HSV-1 DNA Polymerase | CFR 610 | 50μL |
| MOL9004 | HSV-2 | HSV-2 DNA Polymerase | FAM (520) | 50μL |
| MOL9016 | Influenza A | Matrix | FAM (520) | 50μL |
| MOL9017 | Influenza B | Matrix | JOE (560) | 50μL |
| MOL9021 | JCV | VP2/3 | CFR 610 | 50μL |
| MOL9081 | JCV Gen II | VP1-VP2-VP3 | JOE (560) | 25μL |
| MOL9027 | Norovirus I | ORF1/ORF2 | CFR 610 | 50μL |
| MOL9028 | Norovirus II | ORF1/ORF2 | FAM (520) | 50μL |
| MOL9030 | Parainfluenza 1 | HN | FAM (520) | 50μL |
| MOL9031 | Parainfluenza 2 | HN | JOE (560) | 50μL |
| MOL9032 | Parainfluenza 3 | HN | CFR 610 | 50μL |
| MOL9038 | Parechovirus | 5’ Untranslated Region | CFR 610 | 50μL |
| MOL9019 | Parvovirus | VP1 | FAM (520) | 50μL |
| MOL9014 | RSV | Matrix | CFR 610 | 50μL |
| MOL9024 | VZV | DNA Polymerase | JOE (560) | 50μL |
| PRODUCT# | PRIMER PAIR NAME | GENE TARGET | FLUOR | VOLUME |
|---|---|---|---|---|
| MOL9062 | A. phagocytophilum | GroEL | FAM (520) | 25μL |
| MOL9036 | B. holmesii | hIS1001 Insertion | JOE (560) | 50μL |
| MOL9007 | B. parapertussis | hIS1001 Insertion | CFR 610 | 50μL |
| MOL9006 | B. pertussis | IS481 Insertion | FAM (520) | 50μL |
| MOL9063 | Babesia | 18S rRNA | JOE (560) | 25μL |
| MOL9066 | Bartonella | rsmH | FAM (520) | 25μL |
| MOL9015 | Borrelia | FlaA | FAM (520) | 50μL |
| MOL9059 | C. auris | ITS2 | FAM (520) | 25μL |
| MOL9026 | C. difficile | Toxin B | FAM (520) | 50μL |
| MOL9023 | C. pneumoniae | Cpn0980 | FAM (520) | 50μL |
| MOL9400 | C. pneumoniae II | Cpn0980 | JOE (560) | 25μL |
| MOL9064 | Ehrlichia | 16S rRNA | CFR 610 | 25μL |
| MOL9033 | Group A Strep | Exotoxin B | FAM (520) | 50μL |
| MOL9047 | Group B Strep | CFB | CFR 610 | 50μL |
| MOL9093 | Group C Strep | CPN | CFR 610 | 50μL |
| MOL9094 | Group G Strep | mrcB | JOE (560) | 50μL |
| MOL9035 | KPC | blaKPC | FAM (520) | 50μL |
| MOL9034 | L. pneumophila | pmiA | CFR 610 | 50μL |
| MOL9401 | Legionella 16S | rRNA | CFR 610 | 25μL |
| MOL9013 | M. pneumoniae | P1 | FAM (520) | 50μL |
| MOL9058 | M. pneumoniae II | P1 | FAM (520) | 25μL |
| MOL9098 | P. jirovecii | mtLSU | CFR 610 | 25μL |
| MOL9065 | Plasmodium | cox3 | FAM (520) | 25μL |
| MOL9025 | T. gondii | B1 | FAM (520) | 50μL |
| PRODUCT# | PRIMER PAIR NAME | GENE TARGET | FLUOR | VOLUME |
|---|---|---|---|---|
| MOL9771 | Factor V Leiden HyBeacon Gen II | Nucleotide 1691 | Q 670 | 100μL |
| MOL9050 | Factor V Leiden Mutant | G1691A | CFR 610 | 50μL |
| MOL9051 | Factor V Wild Type | G1691WT | FAM (520) | 50μL |
| MOL9775 | MTHFR 677 HyBeacon Gen II | Nucleotide 677 | CFR 610 | 100μL |
| MOL9054 | MTHFR 677 Mutant | C677T | CFR 610 | 50μL |
| MOL9055 | MTHFR 677 Wild Type | Nucleotide 677 | FAM (520) | 50μL |
| MOL9777 | MTHFR 1298 HyBeacon Gen II | Nucleotide 1298 | Q 670 | 100μL |
| MOL9056 | MTHFR 1298 Mutant | A1298C | Q 670 | 50μL |
| MOL9057 | MTHFR 1298 Wild Type | Nucleotide 1298 | JOE (560) | 50μL |
| MOL9773 | Prothrombin (FII) HyBeacon Gen II | Nucleotide 20210 | CFR 610 | 100μL |
| MOL9052 | Prothrombin (FII) Mutant | G20210A | Q 670 | 50μL |
| MOL9053 | Prothrombin (FII) Wild Type | G20210WT | JOE (560) | 50μL |
| PRODUCT# | PRIMER PAIR NAME | GENE TARGET | FLUOR | VOLUME |
|---|---|---|---|---|
| MOL9311 | Adenovirus 3’ Hexon | 3’ Hexon Polypeptide | FAM (520) | 500μL |
| MOL9312 | Adenovirus 5’ Hexon | 5’ Hexon Polypeptide | FAM (520) | 500μL |
| MOL9315 | Borrelia | FlaA | FAM (520) | 500μL |
| MOL9307 | B. parapertussis | IS1001 Insertion | CFR 610 | 200μL |
| MOL9306 | B. pertussis | IS481 Insertion | FAM (520) | 200μL |
| MOL9333 | Group A Strep | Exotoxin B | FAM (520) | 1000μ |
| MOL9333-5 | Group A Strep | Exotoxin B | FAM (520) | 5 x 1000μL |
| MOL9337 | HSV-1 Gen II | HSV-1 DNA Polymerase | CFR 610 | 200μL |
| MOL9304 | HSV-2 | HSV-2 DNA Polymerase | FAM (520) | 200μL |
| MOL9321 | JCV | VP2/3 | CFR 610 | 500μL |
| MOL9319 | Parvovirus | VP1 | FAM (520) | 500μL |
| MOL9324 | VZV | DNA Polymerase | JOE (560) | 200μL |
