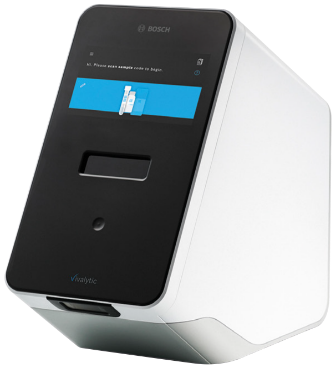

Vivalytic innovates molecular diagnostics. Vivalytic provides sample-to-answer Molecular Diagnostics. It is an
automated platform that combines nucleic acid extraction, PCR amplification, and detection methods. No more
manual preparation, cold chain reagents, or multiple devices.

Vivalytic is a space-saving, hygienic solution for Molecular Diagnostic testing that requires no laptop, keyboard,
barcode scanner, or filling station.


Analyser Type Fully Automated
Sample Volume 200 μl
Relative Humidity Range Operating humidity 30-80% (not condensing)
Weight 15 kg
Storage Humidity 20-95% (not condensing)
Sample Types Sputum, swab, urine, blood, and BAL
Storage Capacity 16 GB
Noise Output 65 dB

Display 7″ high-resolution LCD (RGB)(1024×600) Touch-sensitive screen (responsive to lab gloves)
Electrical Data 100-240 V~, 50/60Hz, 160VA

Data Transfer / Connectivity Supports: HL7, GDT & POCT-1A Ethernet 10/100MN WiFi 2.4GHz (802.11b/g/n)
Internal: Bluetooth v4.1 2.4 GHz (low energy), USB 2.0, 3 USB Ports GSM
Memory Capacity 16 GB

MRSA is a qualitative test detecting and differentiating between methicillin-resistant Staphylococcus aureus (MRSA), methicillin-sensitive Staphylococcus aureus (MSSA), and methicillin-resistant coagulase-negative Staphylococci (MRCoNS). A variety of swabs can be used including human nasal or nasal/throat swabs, cultures, wounds, axilla, groin, and perineum swabs.

Sample Type Swab
Sample Volume 200 μL
Detection Method Real-Time PCR


  • Methicillin-resistant
    Staphylococcus aureus (MRSA)
  • Methicillin-sensitive
    Staphylococcus aureus (MSSA)
  • Methicillin-resistant
    coagulase-negative Staphylococci (MRCoNS)

The Sexually Transmitted Infections is the broadest cartridge-based STI test on the market simultaneously detecting 10 bacterial, viral, and protozoan infections for a comprehensive sexual health profile.

Sample Type Swab or Urine
Sample Volume 200 μL
Detection Method Biochip Array Technology


  • Chlamydia trachomatis (CT)
  • Neisseria gonorrhoea (NG)
  • Trichomonas vaginalis (TV)
  • Mycoplasma genitalium (MG)
  • Treponema pallidum (Syphilis) (TP)
  • Herpes simplex virus 1 (HSV-1)
  • Herpes simplex virus 2 (HSV-2)
  • Haemophilus ducreyi (HD)
  • Mycoplasma hominis (MH)
  • Ureaplasma urealyticum (UU)

The Respiratory Tract Infections is the most comprehensive screening test for infections of both the upper and lower respiratory tracts. It simultaneously detects 14 viral and 8 bacterial infections. The test can be carried out with nasopharyngeal swabs, sputum or broncheoalveolar lavage (BAL).

Sample Type Nasopharyngeal Swab, Sputum, BAL
Sample Volume 200 μL
Detection Method Biochip Array Technology


  • Influenza A
  • Influenza B
  • Adenovirus A/B/C/D/E
  • Bocavirus 1/2/3
  • Coronavirus 229E/NL63
  • Coronavirus OC43/HKU1
  • Enterovirus A/B/C
  • Metapneumovirus
  • Parainfluenza virus 1
  • Parainfluenza virus 2
  • Parainfluenza virus 3
  • Parainfluenza virus 4
  • Respiratory syncytial virus A/B
  • Rhinovirus A/B/C


  • Bordetella parapertussis
  • Bordetella pertussis
  • Chlamydophila pneumoniae
  • Haemophilus influenzae
  • Legionella pneumophila
  • Moraxella catarrhalis
  • Mycoplasma pneumoniae
  • Streptococcus pneumoniae

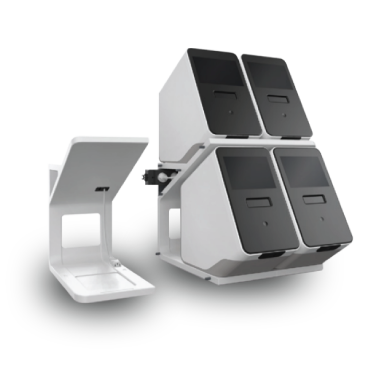

Vivalytic Up

Vivalytic is a standalone analyzer. Alternatively, it can be a modular, expandable system. Stacking analyzers makes Molecular Diagnostic testing scalable, flexible, and space-saving. Vivalytic Up offers a multi-slot, random-access testing platform with one analyzer as the master user interface. One main power cable can power up to 8 analyzers with integrated cable management.

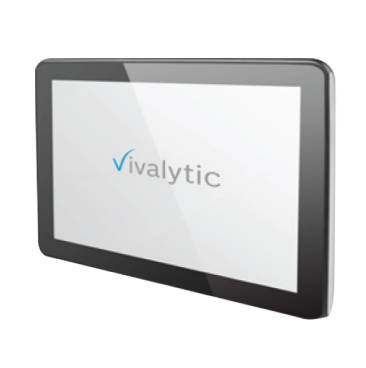

Vivasuite, a device management system, connects to all Vivalytic analyzers. Vivasuite is Vivalytic’s digital ecosystem that reduces service costs and clarifies systems. Vivasuite uses the Bosch IoT Cloud and the highest IT security and privacy standards. Vivasuite’s registration, device management, and automatic software updates inform device administrators about device usage.


  • Extended warranty options for connected products
  • Automatic software updates, including product releases
  • Real-time monitoring of internal machine performance
  • Monitoring of usage in remote settings
